Project Overview

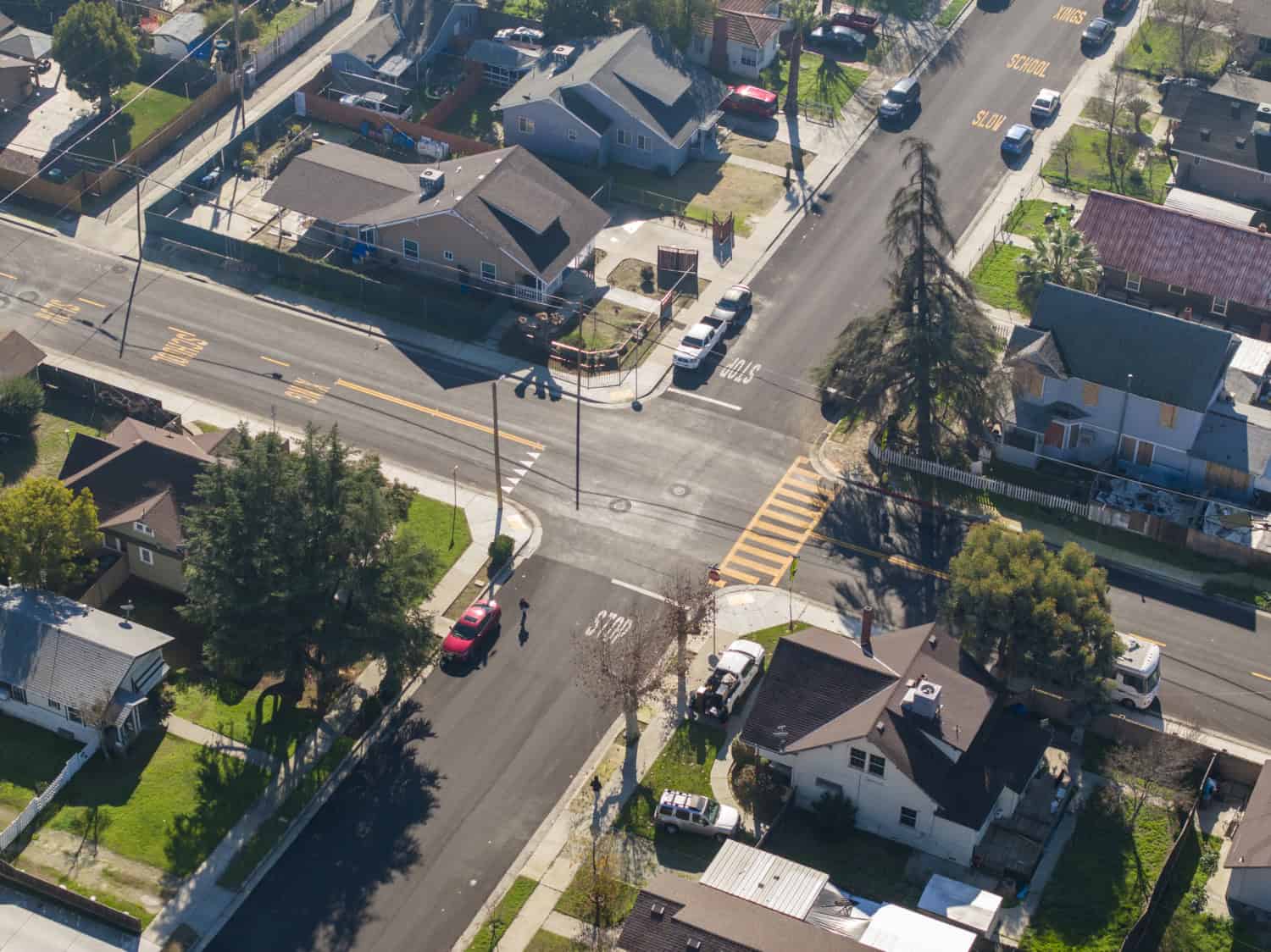

The Alphabet Streets Reconstruction Project in Selma, CA, is a comprehensive civil engineering initiative with a construction cost of approximately $2.2 million. The project, situated between Orange Ave, McCall Ave, Floral Ave, and Rose Ave, involved the removal and reconstruction of the street surface, including asphalt overlay and cape seals over a 420,000 square feet area. Additionally, it addressed ADA accessibility and connectivity issues by replacing defective existing improvements and constructing 51 curb ramps and 10,100 square feet of sidewalk. The project also reconstructed 20 storm drain inlets and implemented enhanced striping and signage for public and children safety, particularly near an elementary school. Furthermore, high visibility crosswalks and 20 Rectangular Rapid Flashing Beacons (RRFBs), featuring large visible signage, LED-based light sources and push-button activation, were installed to improve pedestrian safety at controlled and uncontrolled intersections.
Project Team:
- David Horn, PE, LS | City Engineer
- Derek Lapsley, PE | Project Engineer
- Jose Gonzalez, EIT | Assistant Engineer
- Sergio Alvarado | Construction Manager
- Ray Martinez | Inspector
- R.J. Berry Jr., Inc | General Contractor
Project Details
The Alphabet Streets Reconstruction Project in Selma, CA, was initiated out of a pressing necessity to address the deteriorating condition of existing streets in the specified area. The streets had suffered extensive damage, with issues ranging from a worn-out pavement surface to significant damage caused by tree roots affecting sidewalks and curbs. The absence of proper curb ramps and sidewalks posed accessibility challenges, particularly given the project’s proximity to a heavily trafficked elementary school. The deteriorating infrastructure not only compromised the safety of pedestrians but also raised concerns regarding the potential hazards to the numerous students and parents navigating the area on a daily basis.
In tackling these challenges, the project faced several complexities. One notable challenge was the need for close coordination with homeowners to facilitate access to their residences during the construction process. Additionally, the construction had to be executed within a relatively short timeframe to minimize disruptions to the ongoing activities at the nearby elementary school. Coordinating with active public utility projects further added to the project’s intricacies, demanding meticulous planning and collaboration to ensure a seamless execution.
The outcome of the Alphabet Streets Reconstruction Project is a testament to effective planning and execution. The reconstruction efforts resulted in a smooth roadway that not only enhances the aesthetics of the neighborhood and the combination of enhanced striping, signage, and Rectangular Rapid Flashing Beacons (RRFBs) near the elementary school has bolstered public safety, creating a safer environment for the community at large. Overall, the Alphabet Streets Reconstruction Project stands as a successful endeavor in civil engineering and construction, effectively revitalizing the infrastructure and fostering safety and accessibility in the City of Selma, CA.
